$0.01≥1Set/Sets
| الدفع نوع: | L/C,T/T,D/P,D/A |
| إنكوترم: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| أدني كمية الطلب: | 1 Piece/Pieces |
| نقل: | Ocean,Land,Air,Express |
| ميناء: | Qingdao,Shanghai,Shenzhen |
الظل:
نموذج: SDFLNDBN/HC160DDF10A1.
علامة تجارية: شنغدا
Origin: الصين
شهادة: ISO9001:2015 ISO14001:2015 ISO45001:2018
الحالة: جديد
صناعة قابلة للتطبيق: مصنع التصنيع, أعمال البناء, الطاقة والتعدين, آخر
خدمة خارج الضمان: دعم فني للفيديو, الدعم عبر الإنترنت, خدمة الصيانة والإصلاح الميدانية, قطعة منفصلة
مكان تقديم الخدمات المحلية (في أي البلدان توجد منافذ خدمة خارجية): المملكة العربية السعودية, روسيا, ماليزيا, كازاخستان
فحص مصنع الفيديو: قدمت
تقرير الاختبار الميكانيكي: قدمت
مكان المنشأ: الصين
فترة الضمان: سنة واحدة
موقع صالة العرض (في أي البلدان توجد غرف عينة في الخارج): ماليزيا, روسيا
نوع التسويق: منتج عادي
فترة ضمان المكونات الأساسية: 3 اشهر
نظام الخدمة: الدعم عبر الإنترنت
Connection: G1/2 to DN38
Qmax: 400L/min
Pmax: 25bar
Filter Material: Aluminum
Filter Element Material: Glass fiber, stainless steel wire mesh
Temperature: -30℃ to +100℃
Mounting: Inline filter
Filtration Rating: 3, 5, 10, 20, 25, 50, 100, 200μm
Pressure Setting Of Clogging Indicator : 5bar
Bypass Cracking Pressure: 7bar
| بيع الوحدات | : | Piece/Pieces |
| نوع الحزمة | : | عربات كرتونية وثيقة البحر وحالات الخشب الرقائقي |
| مثال الصورة | : |
|
| تحميل | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

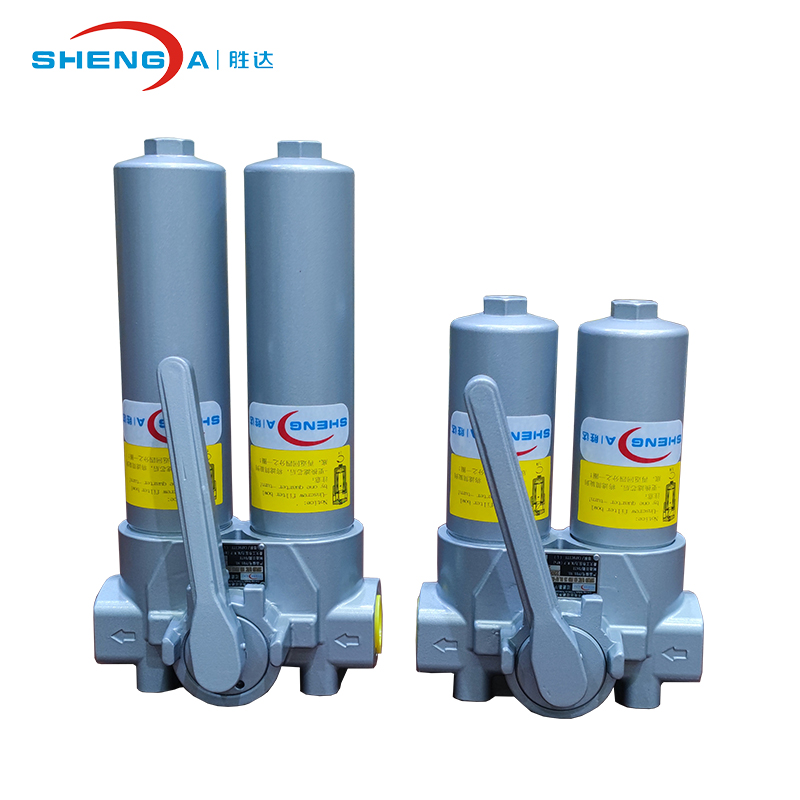

مرشح زيت الضغط المنخفض الوجهين (SDFLND)
--- الدين 24550
---- حتى 400 لتر/دقيقة
--- ما يصل إلى 63BAR
--- المواد ： الألمنيوم
1. المواصفات الفنية
1.1 مرشح الإسكان
بناء
تم تصميم علب التصفية وفقًا للوائح الدولية. وهي تتكون من رأس مرشح مع صمام تغيير مدمج وأوعية مرشح المسمار.
المعدات القياسية:
* بدون صمام الالتفاف
* اتصال لمؤشر انسداد
* قابس تصريف الزيت (FLND 160 إلى 400)
1.2 عناصر التصفية
الأعلى. DP المسموح به:
BN/HC ： 20BAR ； W/HC: 20BAR
2. الوصف
تصاعد كمرشح زيت مضمن
نطاق درجة الحرارة - 30 ℃ ~ + 100 ℃
إعداد الضغط لمؤشر الانسداد △ PA = 5BAR -0.5BAR (آخرون عند الطلب)
تكسير ضغط صمام الالتفاف △ po = 7 بار ± 0.5bar (آخرون عند الطلب)
الأختام NBR (= بيربونان) /مطاط البوتادين النتريل
3. ملاحظات
* يجب أن تكون العلب مرشح الأرض.
* عند استخدام مؤشرات الانسداد الكهربائية ، يجب إيقاف تشغيل مصدر الطاقة الكهربائية للنظام قبل إزالة موصل مؤشر الانسداد.
* تم تصميم المرشحات مع صمام التبديل للحصول على تسرب مسموح به اعتمادًا على وسيط التشغيل.
4. التطبيق
يمكن استخدامه للزيوت المعدنية ، وزيوت التشحيم ، والسوائل غير الفلغة ، والسوائل الاصطناعية والقابلة للتحلل بسرعة.
5. الصور
6. النماذج
| SDRF BN/HC 30…10 A 1.X |
| SDRF BN/HC 60…10 A 1.X |
| SDRF BN/HC 110…10 A 1.X |
| SDRF BN/HC 160…10 A 1.X |
| SDRF BN/HC 240…10 A 1.X |
| SDRF BN/HC 330…10 A 1.X |
| SDRF BN/HC 660…10 A 1.X |
| SDRF BN/HC 950…10 A 1.X |
| SDRF BN/HC 1300…10 A 1.X |
| SDRFD BN/HC 60…10 A 1.X |
| SDRFD BN/HC 110…10 A 1.X |
| SDRFD BN/HC 160…10 A 1.X |
| SDRFD BN/HC 240…10 A 1.X |
| SDRFD BN/HC 330…10 A 1.X |
| SDRFD BN/HC 660…10 A 1.X |
| SDRFD BN/HC 950…10 A 1.X |
| SDRFD BN/HC 1300…10 A 1.X |
| SDRFM BN/HC 75…10 A 1.X |
| SDRFM BN/HC 90…10 A 1.X |
| SDRFM BN/HC 150…10 A 1.X |
| SDRFM BN/HC 165…10 A 1.X |
| SDRFM BN/HC 185…10 A 1.X |
| SDRFM BN/HC 210…10 A 1.X |
| SDRFM BN/HC 270…10 A 1.X |
| SDRFM BN/HC 330…10 A 1.X |
| SDRFM BN/HC 500…10 A 1.X |
| SDRFM BN/HC 661…10 A 1.X |
| SDRFM BN/HC 851…10 A 1.X |
| SDLFM BN/HC 60…10 A 1.X |
| SDLFM BN/HC 110…10 A 1.X |
| SDLFM BN/HC 140…10 A 1.X |
| SDLPF BN/HC 35…10 A 1.X |
| SDLPF BN/HC 55…10 A 1.X |
| SDLPF BN/HC 160…10 A 1.X |
| SDLPF BN/HC 240…10 A 1.X |
| SDLPF BN/HC 280…10 A 1.X |
| SDRFL BN/HC 661…10 A 1.X |
| SDRFL BN/HC 851…10 A 1.X |
| SDRFL BN/HC 951…10 A 1.X |
| SDRFL BN/HC 1301…10 A 1.X |
| SDRFL BN/HC 1321…10 A 1.X |
| SDDF BN/HC 30…10 A 1.X |
| SDDF BN/HC 60…10 A 1.X |
| SDDF BN/HC 110…10 A 1.X |
| SDDF BN/HC 140…10 A 1.X |
| SDDF BN/HC 160…10 A 1.X |
| SDDF BN/HC 240…10 A 1.X |
| SDDF BN/HC 280…10 A 1.X |
| SDDF BN/HC 330…10 A 1.X |
| SDDF BN/HC 500…10 A 1.X |
| SDDF BN/HC 660…10 A 1.X |
| SDDF BN/HC 660…10 A 2.X |
| SDDF BN/HC 990…10 A 2.X |
| SDDF BN/HC 1320…10 A 2.X |
| SDLF BN/HC 30…10 A 1.X |
| SDLF BN/HC 60…10 A 1.X |
| SDLF BN/HC 110…10 A 1.X |
| SDLF BN/HC 160…10 A 1.X |
| SDLF BN/HC 240…10 A 1.X |
| SDLF BN/HC 330…10 A 1.X |
| SDLF BN/HC 660…10 A 1.X |
| SDDFDK BN/HC 30…10 A 1.X |
| SDDFDK BN/HC 60…10 A 1.X |
| SDDFDK BN/HC 110…10 A 1.X |
| SDDFDK BN/HC 140…10 A 1.X |
| SDDFDK BN/HC 160…10 A 1.X |
| SDDFDK BN/HC 240…10 A 1.X |
| SDDFDK BN/HC 280…10 A 1.X |
| SDDFDK BN/HC 330…10 A 1.X |
| SDDFDK BN/HC 500…10 A 1.X |
| SDDFDK BN/HC 660…10 A 1.X |
| SDDFDK BN/HC 660…10 A 2.X |
| SDDFDK BN/HC 990…10 A 2.X |
| SDDFDK BN/HC 1320…10 A 2.X |
| SDFLND BN/HC 40…10 A 1.X |
| SDFLND BN/HC 60…10 A 1.X |
| SDFLND BN/HC 63…10 A 1.X |
| SDFLND BN/HC 100…10 A 1.X |
| SDFLND BN/HC 110…10 A 1.X |
| SDFLND BN/HC 140…10 A 1.X |
| SDFLND BN/HC 160…10 A 1.X |
| SDFLND BN/HC 250…10 A 1.X |
| SDFLND BN/HC 400…10 A 1.X |
| SDFMND BN/HC 40…10 A 1.X |
| SDFMND BN/HC 60…10 A 1.X |
| SDFMND BN/HC 63…10 A 1.X |
| SDFMND BN/HC 100…10 A 1.X |
| SDFMND BN/HC 110…10 A 1.X |
| SDFMND BN/HC 140…10 A 1.X |
| SDFMND BN/HC 160…10 A 1.X |
| SDFMND BN/HC 250…10 A 1.X |
| SDFMND BN/HC 400…10 A 1.X |
| SDDFP BN/HC 60…10 A 1.X |
| SDDFP BN/HC 110…10 A 1.X |
| SDDFP BN/HC 140…10 A 1.X |
| SDDFP BN/HC 160…10 A 1.X |
| SDDFP BN/HC 240…10 A 1.X |
| SDDFP BN/HC 280…10 A 1.X |
| SDDFP BN/HC 330…10 A 1.X |
| SDDFP BN/HC 500…10 A 1.X |
| SDDFP BN/HC 660…10 A 1.X |
| SDDFP BN/HC 990…10 A 2.X |
| SDDFP BN/HC 1320…10 A 2.X |
| SDDF BN/HC 60 MA 10 A 1.X |
| SDDF BN/HC 110 MA 10 A 1.X |
| SDDF BN/HC 140 MA 10 A 1.X |
| SDDF BN/HC 160 MA 10 A 1.X |
| SDDF BN/HC 240 MA 10 A 1.X |
| SDDF BN/HC 280 MA 10 A 1.X |
| SDDF BN/HC 30 QE 10 A 1.X |
| SDDF BN/HC 60 QE 10 A 1.X |
| SDDF BN/HC 110 QE 10 A 1.X |
| SDDF BN/HC 140 QE 10 A 1.X |
| SDDF BN/HC 160 QE 10 A 1.X |
| SDDF BN/HC 240 QE 10 A 1.X |
| SDDF BN/HC 280 QE 10 A 1.X |
| SDDF BN/HC 330 QE 10 A 1.X |
| SDDF BN/HC 500 QE 10 A 1.X |
| SDDF BN/HC 660 QE 10 A 1.X |
| SDDF BN/HC 660 QE 10 A 2.X |
| SDDF BN/HC 990 QE 10 A 2.X |
| SDDF BN/HC 1320 QE 10 A 2.X |
| SDDFZ BH/HC 30…10 A 1.X |
| SDDFZ BH/HC 60…10 A 1.X |
| SDDFZ BH/HC 110…10 A 1.X |
| SDDFF BN/HC 60…10 A 1.X |
| SDDFF BN/HC 110…10 A 1.X |
| SDDFF BN/HC 140…10 A 1.X |
| SDDFF BN/HC 160…10 A 1.X |
| SDDFF BN/HC 240…10 A 1.X |
| SDDFF BN/HC 280…10 A 1.X |
| SDDFF BN/HC 330…10 A 1.X |
| SDDFF BN/HC 500…10 A 1.X |
| SDDFF BN/HC 660…10 A 1.X |
| SDRFLD BN/HC 111…10 A 1.X |
| SDRFLD BN/HC 241…10 A 1.X |
| SDRFLD BN/HC 331 DAK 10 A 1.X |
| SDRFLD BN/HC 331 DAL 10 A 1.X |
| SDRFLD BN/HC 501 DAK 10 A 1.X |
| SDRFLD BN/HC 501 DAL 10 A 1.X |
| SDRFLD BN/HC 661 DAL 10 A 1.X |
| SDRFLD BN/HC 661 DAM 10 A 1.X |
| SDRFLD BN/HC 661 DAS 10 A 1.X |
| SDRFLD BN/HC 851 DAL 10 A 1.X |
| SDRFLD BN/HC 851 DAM 10 A 1.X |
| SDRFLD BN/HC 851 DAS 10 A 1.X |
| SDRFLD BN/HC 951 DAS 10 A 1.X |
| SDRFLD BN/HC 951 DAT 10 A 1.X |
| SDRFLD BN/HC 1301 DAS 10 A 1.X |
| SDRFLD BN/HC 1301 DAT 10 A 1.X |
| SDRFL BN/HC 1300 CK 10 A1.X |
| SDRFL BN/HC 1300 CL 10 A1.X |
| SDRFL BN/HC 1300 CM 10 A1.X |
| SDRFL BN/HC 1300 CQ 10 A1.X |
| SDRFL BN/HC 1300 CR 10 A1.X |
| SDRFL BN/HC 1320 CK 10 A1.X |
| SDRFL BN/HC 1320 CL 10 A1.X |
| SDRFL BN/HC 1320 CM 10 A1.X |
| SDRFL BN/HC 1320 CQ 10 A1.X |
| SDRFL BN/HC 1320 CR 10 A1.X |
| SDRFL BN/HC 1320 CU 10 A1.X |
| SDRFL BN/HC 2500 CL 10 A1.X |
| SDRFL BN/HC 2500 CM 10 A1.X |
| SDRFL BN/HC 2500 CQ 10 A1.X |
| SDRFL BN/HC 2500 CR 10 A1.X |
| SDRFL BN/HC 2500 CU 10 A1.X |
| SDRFL BN/HC 2500 CV 10 A1.X |
| SDRFL BN/HC 2520 CL 10 A1.X |
| SDRFL BN/HC 2520 CM 10 A1.X |
| SDRFL BN/HC 2520 CQ 10 A1.X |
| SDRFL BN/HC 2520 CR 10 A1.X |
| SDRFL BN/HC 2520 CU 10 A1.X |
| SDRFL BN/HC 2520 CV 10 A1.X |
| SDRFL BN/HC 4000 CQ 10 A1.X |
| SDRFL BN/HC 4000 CR 10 A1.X |
| SDRFL BN/HC 4000 CU 10 A1.X |
| SDRFL BN/HC 4000 CV 10 A1.X |
| SDRFL BN/HC 4000 CW 10 A1.X |
| SDRFL BN/HC 4020 CQ 10 A1.X |
| SDRFL BN/HC 4020 CR 10 A1.X |
| SDRFL BN/HC 4020 CU 10 A1.X |
| SDRFL BN/HC 4020 CV 10 A1.X |
| SDRFL BN/HC 4020 CW 10 A1.X |
| SDRFL BN/HC 5200 CQ 10 A1.X |
| SDRFL BN/HC 5200 CR 10 A1.X |
| SDRFL BN/HC 5200 CU 10 A1.X |
| SDRFL BN/HC 5200 CV 10 A1.X |
| SDRFL BN/HC 5200 CW 10 A1.X |
| SDRFL BN/HC 5200 CX 10 A1.X |
| SDRFL BN/HC 5220 CQ 10 A1.X |
| SDRFL BN/HC 5220 CR 10 A1.X |
| SDRFL BN/HC 5220 CU 10 A1.X |
| SDRFL BN/HC 5220 CV 10 A1.X |
| SDRFL BN/HC 5220 CW 10 A1.X |
| SDRFL BN/HC 5220 CX 10 A1.X |
| SDRFL BN/HC 6500 CR 10 A1.X |
| SDRFL BN/HC 6500 CU 10 A1.X |
| SDRFL BN/HC 6500 CV 10 A1.X |
| SDRFL BN/HC 6500 CW 10 A1.X |
| SDRFL BN/HC 6500 CX 10 A1.X |
| SDRFL BN/HC 6520 CR 10 A1.X |
| SDRFL BN/HC 6520 CU 10 A1.X |
| SDRFL BN/HC 6520 CV 10 A1.X |
| SDRFL BN/HC 6520 CW 10 A1.X |
| SDRFL BN/HC 6520 CX 10 A1.X |
| SDRFL BN/HC 7800 CR 10 A1.X |
| SDRFL BN/HC 7800 CU 10 A1.X |
| SDRFL BN/HC 7800 CV 10 A1.X |
| SDRFL BN/HC 7800 CW 10 A1.X |
| SDRFL BN/HC 7800 CX 10 A1.X |
| SDRFL BN/HC 7820 CR 10 A1.X |
| SDRFL BN/HC 7820 CU 10 A1.X |
| SDRFL BN/HC 7820 CV 10 A1.X |
| SDRFL BN/HC 7820 CW 10 A1.X |
| SDRFL BN/HC 7820 CX 10 A1.X |
| SDRFL BN/HC 15000 CW 10 A1.X |
| SDRFL BN/HC 15000 CX 10 A1.X |
| SDRFL BN/HC 15000 CY 10 A1.X |
| SDRFL BN/HC 15020 CW 10 A1.X |
| SDRFL BN/HC 15020 CX 10 A1.X |
| SDRFL BN/HC 15020 CY 10 A1.X |
| SDRFL BN/HC 1303 CK 10 A1.X |
| SDRFL BN/HC 1303 CL 10 A1.X |
| SDRFL BN/HC 1303 CM 10 A1.X |
| SDRFL BN/HC 1303 CQ 10 A1.X |
| SDRFL BN/HC 1303 CR 10 A1.X |
| SDRFL BN/HC 1323 CK 10 A1.X |
| SDRFL BN/HC 1323 CL 10 A1.X |
| SDRFL BN/HC 1323 CM 10 A1.X |
| SDRFL BN/HC 1323 CQ 10 A1.X |
| SDRFL BN/HC 1323 CR 10 A1.X |
| SDRFL BN/HC 1323 CU 10 A1.X |
| SDRFL BN/HC 2503 CL 10 A1.X |
| SDRFL BN/HC 2503 CM 10 A1.X |
| SDRFL BN/HC 2503 CQ 10 A1.X |
| SDRFL BN/HC 2503 CR 10 A1.X |
| SDRFL BN/HC 2503 CU 10 A1.X |
| SDRFL BN/HC 2503 CV 10 A1.X |
| SDRFL BN/HC 2523 CL 10 A1.X |
| SDRFL BN/HC 2523 CM 10 A1.X |
| SDRFL BN/HC 2523 CQ 10 A1.X |
| SDRFL BN/HC 2523 CR 10 A1.X |
| SDRFL BN/HC 2523 CU 10 A1.X |
| SDRFL BN/HC 2523 CV 10 A1.X |
| SDRFL BN/HC 4003 CQ 10 A1.X |
| SDRFL BN/HC 4003 CR 10 A1.X |
| SDRFL BN/HC 4003 CU 10 A1.X |
| SDRFL BN/HC 4003 CV 10 A1.X |
| SDRFL BN/HC 4003 CW 10 A1.X |
| SDRFL BN/HC 4023 CQ 10 A1.X |
| SDRFL BN/HC 4023 CR 10 A1.X |
| SDRFL BN/HC 4023 CU 10 A1.X |
| SDRFL BN/HC 4023 CV 10 A1.X |
| SDRFL BN/HC 4023 CW 10 A1.X |
| SDRFL BN/HC 5203 CQ 10 A1.X |
| SDRFL BN/HC 5203 CR 10 A1.X |
| SDRFL BN/HC 5203 CU 10 A1.X |
| SDRFL BN/HC 5203 CV 10 A1.X |
| SDRFL BN/HC 5203 CW 10 A1.X |
| SDRFL BN/HC 5203 CX 10 A1.X |
| SDRFL BN/HC 5223 CQ 10 A1.X |
| SDRFL BN/HC 5223 CR 10 A1.X |
| SDRFL BN/HC 5223 CU 10 A1.X |
| SDRFL BN/HC 5223 CV 10 A1.X |
| SDRFL BN/HC 5223 CW 10 A1.X |
| SDRFL BN/HC 5223 CX 10 A1.X |
| SDRFL BN/HC 6503 CR 10 A1.X |
| SDRFL BN/HC 6503 CU 10 A1.X |
| SDRFL BN/HC 6503 CV 10 A1.X |
| SDRFL BN/HC 6503 CW 10 A1.X |
| SDRFL BN/HC 6503 CX 10 A1.X |
| SDRFL BN/HC 6523 CR 10 A1.X |
| SDRFL BN/HC 6523 CU 10 A1.X |
| SDRFL BN/HC 6523 CV 10 A1.X |
| SDRFL BN/HC 6523 CW 10 A1.X |
| SDRFL BN/HC 6523 CX 10 A1.X |
| SDRFL BN/HC 7803 CR 10 A1.X |
| SDRFL BN/HC 7803 CU 10 A1.X |
| SDRFL BN/HC 7803 CV 10 A1.X |
| SDRFL BN/HC 7803 CW 10 A1.X |
| SDRFL BN/HC 7803 CX 10 A1.X |
| SDRFL BN/HC 7823 CR 10 A1.X |
| SDRFL BN/HC 7823 CU 10 A1.X |
| SDRFL BN/HC 7823 CV 10 A1.X |
| SDRFL BN/HC 7823 CW 10 A1.X |
| SDRFL BN/HC 7823 CX 10 A1.X |
| SDRFL BN/HC 15003 CW 10 A1.X |
| SDRFL BN/HC 15003 CX 10 A1.X |
| SDRFL BN/HC 15003 CY 10 A1.X |
| SDRFL BN/HC 15023 CW 10 A1.X |
| SDRFL BN/HC 15023 CX 10 A1.X |
| SDRFL BN/HC 15023 CY 10 A1.X |
| SDRFLD BN/HC 1300 CAK 10 A1.X |
| SDRFLD BN/HC 1300 CAL 10 A1.X |
| SDRFLD BN/HC 1300 CAM 10 A1.X |
| SDRFLD BN/HC 1300 CAS 10 A1.X |
| SDRFLD BN/HC 1300 CAT 10 A1.X |
| SDRFLD BN/HC 1320 CAK 10 A1.X |
| SDRFLD BN/HC 1320 CAL 10 A1.X |
| SDRFLD BN/HC 1320 CAM 10 A1.X |
| SDRFLD BN/HC 1320 CAS 10 A1.X |
| SDRFLD BN/HC 1320 CAT 10 A1.X |
| SDRFLD BN/HC 1320 CAU 10 A1.X |
| SDRFLD BN/HC 2500 CAL 10 A1.X |
| SDRFLD BN/HC 2500 CAM 10 A1.X |
| SDRFLD BN/HC 2500 CAS 10 A1.X |
| SDRFLD BN/HC 2500 CAT 10 A1.X |
| SDRFLD BN/HC 2500 CAU 10 A1.X |
| SDRFLD BN/HC 2500 CAV 10 A1.X |
| SDRFLD BN/HC 2520 CAL 10 A1.X |
| SDRFLD BN/HC 2520 CAM 10 A1.X |
| SDRFLD BN/HC 2520 CAS 10 A1.X |
| SDRFLD BN/HC 2520 CAT 10 A1.X |
| SDRFLD BN/HC 2520 CAU 10 A1.X |
| SDRFLD BN/HC 2520 CAV 10 A1.X |
| SDRFLD BN/HC 4000 CAS 10 A1.X |
| SDRFLD BN/HC 4000 CAT 10 A1.X |
| SDRFLD BN/HC 4000 CAU 10 A1.X |
| SDRFLD BN/HC 4000 CAV 10 A1.X |
| SDRFLD BN/HC 4020 CAS 10 A1.X |
| SDRFLD BN/HC 4020 CAT 10 A1.X |
| SDRFLD BN/HC 4020 CAU 10 A1.X |
| SDRFLD BN/HC 4020 CAV 10 A1.X |
| SDRFLD BN/HC 5200 CAS 10 A1.X |
| SDRFLD BN/HC 5200 CAT 10 A1.X |
| SDRFLD BN/HC 5200 CAU 10 A1.X |
| SDRFLD BN/HC 5200 CAV 10 A1.X |
| SDRFLD BN/HC 5220 CAS 10 A1.X |
| SDRFLD BN/HC 5220 CAT 10 A1.X |
| SDRFLD BN/HC 5220 CAU 10 A1.X |
| SDRFLD BN/HC 5220 CAV 10 A1.X |
| SDRFLD BN/HC 6500 CAT 10 A1.X |
| SDRFLD BN/HC 6500 CAU 10 A1.X |
| SDRFLD BN/HC 6500 CAV 10 A1.X |
| SDRFLD BN/HC 6520 CAT 10 A1.X |
| SDRFLD BN/HC 6520 CAU 10 A1.X |
| SDRFLD BN/HC 6520 CAV 10 A1.X |
| SDRFLD BN/HC 7800 CAT 10 A1.X |
| SDRFLD BN/HC 7800 CAU 10 A1.X |
| SDRFLD BN/HC 7800 CAV 10 A1.X |
| SDRFLD BN/HC 7820 CAT 10 A1.X |
| SDRFLD BN/HC 7820 CAU 10 A1.X |
| SDRFLD BN/HC 7820 CAV 10 A1.X |
| SDRFLD BN/HC 4000 CBW 10 A1.X |
| SDRFLD BN/HC 4020 CBW 10 A1.X |
| SDRFLD BN/HC 5200 CBW 10 A1.X |
| SDRFLD BN/HC 5200 CBX 10 A1.X |
| SDRFLD BN/HC 5220 CBW 10 A1.X |
| SDRFLD BN/HC 5220 CBX 10 A1.X |
| SDRFLD BN/HC 6500 CBW 10 A1.X |
| SDRFLD BN/HC 6500 CBX 10 A1.X |
| SDRFLD BN/HC 6520 CBW 10 A1.X |
| SDRFLD BN/HC 6520 CBX 10 A1.X |
| SDRFLD BN/HC 7800 CBW 10 A1.X |
| SDRFLD BN/HC 7800 CBX 10 A1.X |
| SDRFLD BN/HC 7820 CBW 10 A1.X |
| SDRFLD BN/HC 7820 CBX 10 A1.X |
| SDRFLD BN/HC 15000 CBW 10 A1.X |
| SDRFLD BN/HC 15000 CBX 10 A1.X |
| SDRFLD BN/HC 15020 CBW 10 A1.X |
| SDRFLD BN/HC 15020 CBX 10 A1.X |
| SDRFLD BN/HC 2500 CCV 10 A1.X |
| SDRFLD BN/HC 2520 CCV 10 A1.X |
| SDRFLD BN/HC 4000 CCV 10 A1.X |
| SDRFLD BN/HC 4000 CCW 10 A1.X |
| SDRFLD BN/HC 4020 CCV 10 A1.X |
| SDRFLD BN/HC 4020 CCW 10 A1.X |
| SDRFLD BN/HC 5200 CCV 10 A1.X |
| SDRFLD BN/HC 5200 CCW 10 A1.X |
| SDRFLD BN/HC 5200 CCX 10 A1.X |
| SDRFLD BN/HC 5220 CCV 10 A1.X |
| SDRFLD BN/HC 5220 CCW 10 A1.X |
| SDRFLD BN/HC 5220 CCX 10 A1.X |
| SDRFLD BN/HC 6500 CCV 10 A1.X |
| SDRFLD BN/HC 6500 CCW 10 A1.X |
| SDRFLD BN/HC 6500 CCX 10 A1.X |
| SDRFLD BN/HC 6520 CCV 10 A1.X |
| SDRFLD BN/HC 6520 CCW 10 A1.X |
| SDRFLD BN/HC 6520 CCX 10 A1.X |
| SDRFLD BN/HC 7800 CCV 10 A1.X |
| SDRFLD BN/HC 7800 CCW 10 A1.X |
| SDRFLD BN/HC 7800 CCX 10 A1.X |
| SDRFLD BN/HC 7820 CCV 10 A1.X |
| SDRFLD BN/HC 7820 CCW 10 A1.X |
| SDRFLD BN/HC 7820 CCX 10 A1.X |
| SDRFLD BN/HC 15000 CCW 10 A1.X |
| SDRFLD BN/HC 15000 CCX 10 A1.X |
| SDRFLD BN/HC 15000 CCY 10 A1.X |
| SDRFLD BN/HC 15020 CCW 10 A1.X |
| SDRFLD BN/HC 15020 CCX 10 A1.X |
| SDRFLD BN/HC 15020 CCY 10 A1.X |
| SDRFLD BN/HC 1303 CAK 10 A1.X |
| SDRFLD BN/HC 1303 CAL 10 A1.X |
| SDRFLD BN/HC 1303 CAM 10 A1.X |
| SDRFLD BN/HC 1303 CAS 10 A1.X |
| SDRFLD BN/HC 1303 CAT 10 A1.X |
| SDRFLD BN/HC 1323 CAK 10 A1.X |
| SDRFLD BN/HC 1323 CAL 10 A1.X |
| SDRFLD BN/HC 1323 CAM 10 A1.X |
| SDRFLD BN/HC 1323 CAS 10 A1.X |
| SDRFLD BN/HC 1323 CAT 10 A1.X |
| SDRFLD BN/HC 1323 CAU 10 A1.X |
| SDRFLD BN/HC 2503 CAL 10 A1.X |
| SDRFLD BN/HC 2503 CAM 10 A1.X |
| SDRFLD BN/HC 2503 CAS 10 A1.X |
| SDRFLD BN/HC 2503 CAT 10 A1.X |
| SDRFLD BN/HC 2503 CAU 10 A1.X |
| SDRFLD BN/HC 2503 CAV 10 A1.X |
| SDRFLD BN/HC 2523 CAL 10 A1.X |
| SDRFLD BN/HC 2523 CAM 10 A1.X |
| SDRFLD BN/HC 2523 CAS 10 A1.X |
| SDRFLD BN/HC 2523 CAT 10 A1.X |
| SDRFLD BN/HC 2523 CAU 10 A1.X |
| SDRFLD BN/HC 2523 CAV 10 A1.X |
| SDRFLD BN/HC 4003 CAS 10 A1.X |
| SDRFLD BN/HC 4003 CAT 10 A1.X |
| SDRFLD BN/HC 4003 CAU 10 A1.X |
| SDRFLD BN/HC 4003 CAV 10 A1.X |
| SDRFLD BN/HC 4023 CAS 10 A1.X |
| SDRFLD BN/HC 4023 CAT 10 A1.X |
| SDRFLD BN/HC 4023 CAU 10 A1.X |
| SDRFLD BN/HC 4023 CAV 10 A1.X |
| SDRFLD BN/HC 5203 CAS 10 A1.X |
| SDRFLD BN/HC 5203 CAT 10 A1.X |
| SDRFLD BN/HC 5203 CAU 10 A1.X |
| SDRFLD BN/HC 5203 CAV 10 A1.X |
| SDRFLD BN/HC 5223 CAS 10 A1.X |
| SDRFLD BN/HC 5223 CAT 10 A1.X |
| SDRFLD BN/HC 5223 CAU 10 A1.X |
| SDRFLD BN/HC 5223 CAV 10 A1.X |
| SDRFLD BN/HC 6503 CAT 10 A1.X |
| SDRFLD BN/HC 6503 CAU 10 A1.X |
| SDRFLD BN/HC 6503 CAV 10 A1.X |
| SDRFLD BN/HC 6523 CAT 10 A1.X |
| SDRFLD BN/HC 6523 CAU 10 A1.X |
| SDRFLD BN/HC 6523 CAV 10 A1.X |
| SDRFLD BN/HC 7803 CAT 10 A1.X |
| SDRFLD BN/HC 7803 CAU 10 A1.X |
| SDRFLD BN/HC 7803 CAV 10 A1.X |
| SDRFLD BN/HC 7823 CAT 10 A1.X |
| SDRFLD BN/HC 7823 CAU 10 A1.X |
| SDRFLD BN/HC 7823 CAV 10 A1.X |
| SDRFLD BN/HC 4003 CBW 10 A1.X |
| SDRFLD BN/HC 4023 CBW 10 A1.X |
| SDRFLD BN/HC 5203 CBW 10 A1.X |
| SDRFLD BN/HC 5203 CBX 10 A1.X |
| SDRFLD BN/HC 5223 CBW 10 A1.X |
| SDRFLD BN/HC 5223 CBX 10 A1.X |
| SDRFLD BN/HC 6503 CBW 10 A1.X |
| SDRFLD BN/HC 6503 CBX 10 A1.X |
| SDRFLD BN/HC 6523 CBW 10 A1.X |
| SDRFLD BN/HC 6523 CBX 10 A1.X |
| SDRFLD BN/HC 7803 CBW 10 A1.X |
| SDRFLD BN/HC 7803 CBX 10 A1.X |
| SDRFLD BN/HC 7823 CBW 10 A1.X |
| SDRFLD BN/HC 7823 CBX 10 A1.X |
| SDRFLD BN/HC 15003 CBW 10 A1.X |
| SDRFLD BN/HC 15003 CBX 10 A1.X |
| SDRFLD BN/HC 15023 CBW 10 A1.X |
| SDRFLD BN/HC 15023 CBX 10 A1.X |
| SDRFLD BN/HC 2503 CCV 10 A1.X |
| SDRFLD BN/HC 2523 CCV 10 A1.X |
| SDRFLD BN/HC 4003 CCV 10 A1.X |
| SDRFLD BN/HC 4003 CCW 10 A1.X |
| SDRFLD BN/HC 4023 CCV 10 A1.X |
| SDRFLD BN/HC 4023 CCW 10 A1.X |
| SDRFLD BN/HC 5203 CCV 10 A1.X |
| SDRFLD BN/HC 5203 CCW 10 A1.X |
| SDRFLD BN/HC 5203 CCX 10 A1.X |
| SDRFLD BN/HC 5223 CCV 10 A1.X |
| SDRFLD BN/HC 5223 CCW 10 A1.X |
| SDRFLD BN/HC 5223 CCX 10 A1.X |
| SDRFLD BN/HC 6503 CCV 10 A1.X |
| SDRFLD BN/HC 6503 CCW 10 A1.X |
| SDRFLD BN/HC 6503 CCX 10 A1.X |
| SDRFLD BN/HC 6523 CCV 10 A1.X |
| SDRFLD BN/HC 6523 CCW 10 A1.X |
| SDRFLD BN/HC 6523 CCX 10 A1.X |
| SDRFLD BN/HC 7803 CCV 10 A1.X |
| SDRFLD BN/HC 7803 CCW 10 A1.X |
| SDRFLD BN/HC 7803 CCX 10 A1.X |
| SDRFLD BN/HC 7823 CCV 10 A1.X |
| SDRFLD BN/HC 7823 CCW 10 A1.X |
| SDRFLD BN/HC 7823 CCX 10 A1.X |
| SDRFLD BN/HC 15003 CCW 10 A1.X |
| SDRFLD BN/HC 15003 CCX 10 A1.X |
| SDRFLD BN/HC 15003 CCY 10 A1.X |
| SDRFLD BN/HC 15023 CCW 10 A1.X |
| SDRFLD BN/HC 15023 CCX 10 A1.X |
| SDRFLD BN/HC 15023 CCY 10 A1.X |
تشارك شركة Xinxiang Shengda Filtration Technique Co. ، Ltd ، في تصميم وتصنيع منتجات الترشيح منذ تأسيسها في عام 1998. ويكرس العديد من المهندسين المحترفين والخبراء أبحاث وتنقية الترشيح والتطبيق لتقديم الدعم الفني لتصميم المنتج وتصنيعه.
مع معدات التصنيع المتقدمة ، وتكنولوجيا الإنتاج المتطورة ، ونظام ضمان الجودة الصوتي ، مررنا نظام إدارة الجودة ISO 9001: 2015 ، ISO 14001: 2015 A2 ، تصميم وتصنيع شهادة التخويل وتخطيط اللوائح من قبل الجمعية الأمريكية للمهندسين الميكانيكيين (ASME) مع u Stamp.
يتم تطبيق المنتجات بشكل أساسي على البترول والكيمياء والفحم الكيميائية والطاقة النووية وتوليد التوربينات الغازية وطاقة الرياح وتوليد الطاقة التي تعمل بالفحم والآلات الهندسية واستخراج الفحم ، إلخ ، الصناعة.
معلومات عنا
كونسنا
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
Fill in more information so that we can get in touch with you faster
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
الآن الاتصال
