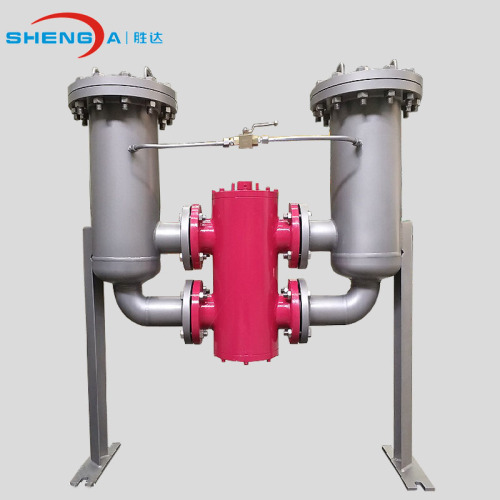

Duplex Inline Oil Filter SDRFLDBN/HC1301DAS10D1.X/-L24

Duplex Inline Oil Filter (SDRFLD) (Welded Version)

---cast /steel material

---up to 1300 L/min

---up to 25/40 bar

---equipped with a ball change-over valve

1. Technical Specifications

1.1 Filter Housing

Construction

The filter housings are designed in accordance with international regulations. The two sections of the filter housing (each with bolt-on cover plates) are connected by means of a ball change-over valve.

Standard equipment:

* connections for venting and draining

* connection for a clogging indicator

* pressure equalization line

1.2. Filter Elements

Max. Allowable D.P.:

BN/HC：20bar； P/HC: 10bar W/HC: 20bar V: 30bar

2. Description

Mounting as inline oil filter

Temperature range - 10 ℃ ~ + 100 ℃

Pressure setting of clogging indicator △ Pa= 2bar -0.2bar (others on request)

Seals NBR (=Perbunan)

3. Notes

* Filter housings must be earthed.

* When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

* Filters must be flexibly mounted and not fixed rigidly to the floor or used as a pipe support.

4. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

5. Photos
